Orders for this product usually ship in 7-14 business days.
The Ultimate Ox Kit is a complete rigging system that puts numerous rigging options at the users fingertips. For example, the user can create a 4-to-1 mechanical advantage on up to a 50 working height. Similarly, the user can create a 5-to-1 mechanical advantage on up to a 35 working height.
The Ultimate Ox Kit fits in a small, self-contained bag and can be stored in the back of a truck with ease.

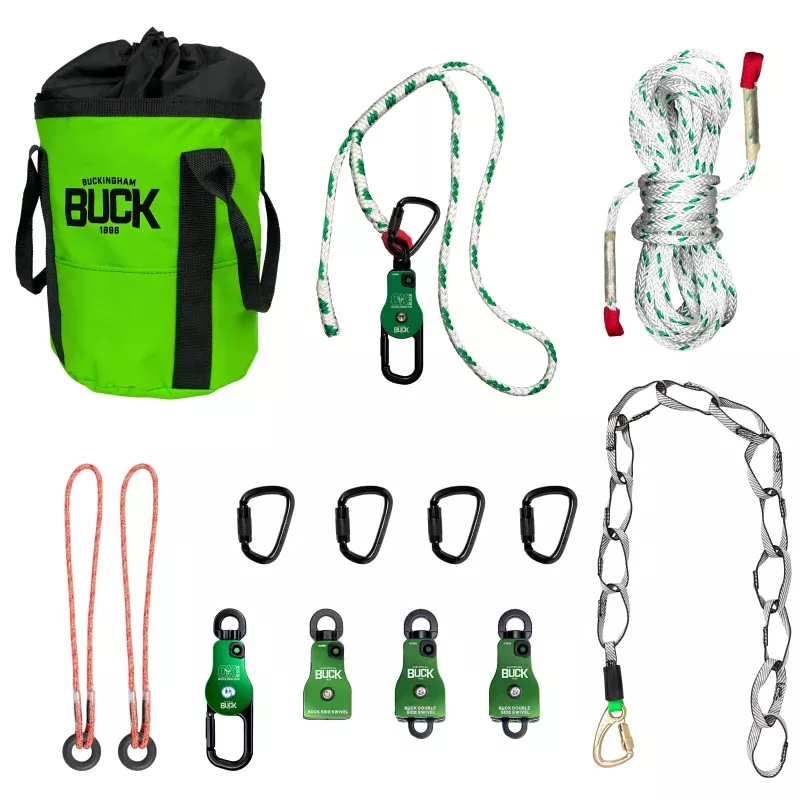

The Ultimate Ox Kit contains:
- OX BLOCK Swivel Eye & Carabiner w/4 Sling 50061A-4(Qty: 1)
- OX BLOCK 50061(Qty: 1)
- Buck Side Swivel Single Sheath 50071B1(Qty: 1)
- Buck Side Swivel Double Sheath 50071B2(Qty: 2)
- Rope Bag 4569G4P-150(Qty: 1)
- Rope (250) 39SAM27Q2-250(Qty: 1)
- Steel Double Action Carabiner 5005S5(Qty: 4)
- Prusik Loop with Aluminum Ring P9J8V- M-34(Qty: 2)
- BuckLink Sling –3903S-6(Qty: 1)
As with most of Buckingham Manufacturings products, the UOK is completely customizable. Call customer service to customize or email[email protected].
The OX BLOCK is a rope snatchblock with an integrated friction bar used for:
- Hurtman/self-rescue
- Lowering
- Raising
- Snubbing loads
It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the OX BLOCK.
- The patented OX BLOCK replaces standard handline blocks, parted blocks and various snatch blocks.
- Has greater WLLs than blocks of similar size.
- When configured with optional pulleys, the OX BLOCK can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads.
- The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device.
- The Ox Block is ASME B30 Compliant.
50061A-450061, 50071B1, 50071B2, 4374, 5005S3, P9J8V- M-34, 3903S-6
OX BLOCK Instructions & Warnings
P7J & P9J Series Prusik Loop Instructions & Warnings
Ox Handline Inspection Instructions
Buck Side Swivel Instructions & Warnings
Rigging Carabiner Instructions
Ox Block Sling Instructions & Warnings
Product Specifications
50061A-450061, 50071B1, 50071B2, 4374, 5005S5, P9J8V-+M-34, 3903S-6
| Product Name: |
OX BLOCK HANDLINE ASSEMBLY |
| Material: |
Polyester Rope, Aluminum OX Block (50061), Steel Rigging Carabiner (5005S5) |
| Length: |
4 Sling (Rope), 8.27″ OX Block (50061), 4.68″ Carabiner (5005S5) |
| Width: |
5/8″ Rope, 1.99″ OX Block (50061), 3.07″ Carabiner (5005S5) |
| Weight Rating: |
5,000 lbs. |
| Weight: |
4.25 lbs. |
| Breaking Strength: |
Carabiner (5005S5)- MBS 11,240lbs (50KN), OX Block (50061)- MBS (Sheave to eye)- 10,000lbf/MBS (Hook to eye)- 6,000lbf. WLL-50061A-4 (Sling Only)- Straight- 3,200 lbs, Choker- 2,560 lbs, Basket- 6,400lbs. |
| Links to Relevant Hardware: |
50061 OX Block |
| 5005S5 Carabiner |
| OX Block Standards: |
ASME B30 Compliant |
| Product Name: |
OX Block |
| Material: |
Lightweight Aluminum |
| Length: |
10.5″ |
| Width: |
2″ |
| Gate Opening Capacity: |
1.5″ |
| Weight: |
2.15 |
| Connectors: |
Four 5005S5 Double Action Carabiners |
| HOOK TO EYE: |
|
| MBS: |
6,000 lbs |
| WLL: |
1,500 lbf |
| SHEAVE TO EYE: |
|
| MBS: |
10,000 lbs |
| WLL: |
2,500 lbf |
| Product Name: |
Buck Side Swivel |
| Weight: |
1.6 lb |
| Length: |
7″ (178mm) |
| Width: |
3″ (76mm) |
| Material: |
Aluminum |
| Diameter of Eye: |
Swivel Eye – 1″ |
| Breaking Strength: |
MBS – 10000 lbf (44KN) / WLL – 2500 lbf (11KN) |
| Other: |
Max Rope Diameter – 5/8″ (16mm) / 5/8″ x 2 1/8″ Sealed Ball Bearing Pulley Thickness – 1.813″ (46mm) |
| Product Name: |
Dual Buck Side Swivel |
| Option Number: |
N/A |
| Weight: |
2.6 lbs |
| Length: |
8″ |
| Width: |
3″ |
| Material: |
Aluminum |
| Diameter of Eye: |
Swivel Eye (upper eye) – 1″ / Becket Eye (lower eye) – 0.8″ |
| Breaking Strength: |
MBS 10000 lbf 44(kn) |
| Diameter Rope Capacity: |
5/8″ (16mm) |
| Other: |
Double Pulley |
| Product Name: |
Rigging Carabiner |
| Option Number: |
N/A |
| Weight: |
10.5 oz |
| Length: |
4.68″ (119mm) |
| Width: |
3.07″ (78mm) |
| Material: |
Alloy Steel |
| Diameter of Eye: |
No Eye |
| Gate Opening Capacity: |
0.94″ (24mm) |
| Gate Strength: |
3600 lbs |
| Breaking Strength: |
11240 lbs (50KN) |
| Standards Met: |
CSA Z259.12 / ANSI Z359.12 |
| Other: |
Double Action (2) |
| Product Name: |
5/16″ PRUSIK LOOP WITH AN ALUMINUM RING |
| Material: |
Warpspeed Red Rope |
| Prusik Type: |
Prusik w/ Aluminum Ring |
| Rope Size: |
5/16″ |
| Length: |
34″ |
| Max Weight Capacity: |
350 lbs when fully equipped |
| Standards: |
ANSI Z133 |
| Weight: |
0.3 lbs |
| Product Name: |
BuckLink Sling |
| Overall Length: |
6ft long |
| Width: |
3/4″ Spectra |
| Connector Material: |
Steel |
| Material Type: |
Spectra |
| Weight: |
1.5 lbs |
| User Weight Capacity: |
5000 lbs individual rated loops |
| Product Type: |
Sling |
| Standards: |
EN362-2004, ANSI/ASSE Z359.12-2009, CSA Z259.12-01 & CSA Z259.12-11 (1711 Snap). |
| Link to Relevant Hardware: |
1711 Snap |
