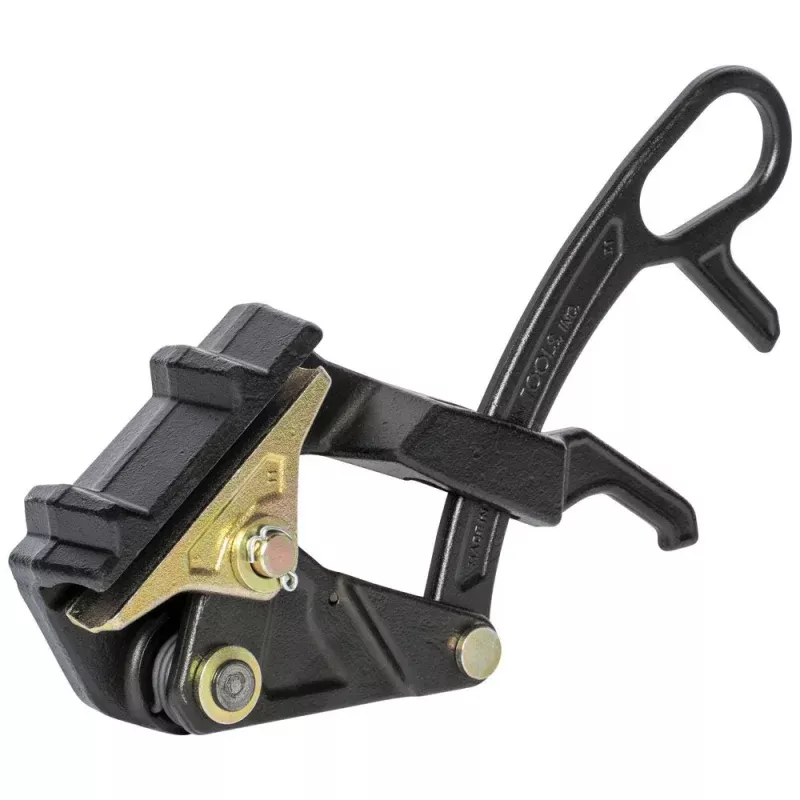

Wide Range Transmission Grip – 16499

Orders for this product usually ship in 7-14 business days.

Features:

• Securely pulls ACSR, AAC and bare copper cables
• Holds cable sizes from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm)
• Fine Sawtooth jaw geometry provides greater grip strength
• Spring closes grip on cable to hold the initial position
• Made in the USA
• Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
• Max Safe Load of 12,000-Pound (5443 kg)
• Patent pending design

Product Specifications:

Type: Parallel Jaw Grip Application: Wire Pulling Special Features: One-Handed Grip Overall Length: 13.1″ Overall Height: 8.1″ Overall Width: 2.4″ Material: ACSR, AAC, Bare Copper Cable Type: Bare Cable Cable Diameter: 0.68″ to 1.42″ Hot Latch: No Swing Latch: No Spring: Yes Locking Handle: Yes Jaw Type: Round Jaw Length: 4.85″ Maximum Safe Load: 12,000 lb Weight: 8.1 lb UPC: 092644470769

Warnings:

• Grips are to be used for temporary installation, not for permanent anchorage.
• When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
